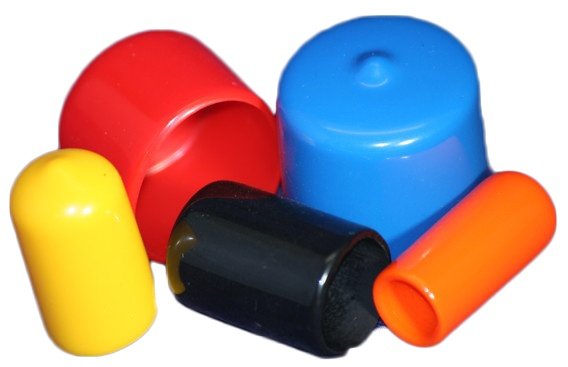

Das flexible Material passt sich auch nicht-runden Formen perfekt an. Tauchlängen in mm-Schritten möglich.
Keine Preisaufschläge für Standardfarben auch kleine Serien möglich.
Beispiel:
Die Kappe Ø 7,5mm ist als Standard in der Länge 10mm ab Lager lieferbar. Es ist jedoch möglich die Kappe bis zu einer maximalen Länge von 105mm (Tauchlänge) in 1mm Schritten zu erhalten.
| Artikelnummer | Anwendung | innen (mm) | Länge (mm) | Tauchlänge (mm) | Aktion |
|---|---|---|---|---|---|
| 01-01-008-001 | 2,0 | 10,0 | 20,0 | Muster | |
| 01-01-008-002 | 2,5 | 10,0 | 20,0 | Muster | |
| 01-01-008-003 | M3 | 3,0 | 10,0 | 30,0 | Muster |
| 01-01-008-004 | M4 | 3,5 | 10,0 | 30,0 | Muster |
| 01-01-008-005 | 4,0 | 10,0 | 55,0 | Muster | |
| 01-01-008-006 | M5 | 5,0 | 10,0 | 55,0 | Muster |
| 01-01-008-007 | 5,3 | 10,0 | 55,0 | Muster | |
| 01-01-008-008 | M6 | 6,0 | 10,0 | 105,0 | Muster |
| 01-01-008-009 | 7,0 | 10,0 | 105,0 | Muster | |
| 01-01-008-010 | M8 | 7,5 | 10,0 | 105,0 | Muster |
| 01-01-008-011 | 8,0 | 10,0 | 105,0 | Muster | |
| 01-01-008-012 | M10; 1/8 | 9,7 | 10,0 | 105,0 | Muster |
| 01-01-008-013 | 11,0 | 15,0 | 105,0 | Muster | |
| 01-01-008-014 | M12; 7/16 | 11,5 | 15,0 | 105,0 | Muster |
| 01-01-008-015 | 12,0 | 15,0 | 100,0 | Muster | |
| 01-01-008-016 | 1/4 | 12,8 | 15,0 | 105,0 | Muster |
| 01-01-008-017 | M14 | 14,0 | 15,0 | 105,0 | Muster |
| 01-01-008-018 | M16; 3/8 | 15,8 | 15,8 | 105,0 | Muster |
| 01-01-008-019 | 16,6 | 20,0 | 105,0 | Muster | |
| 01-01-008-020 | 18,8 | 20,0 | 105,0 | Muster | |
| 01-01-008-021 | M20; 1/2 | 19,0 | 20,0 | 105,0 | Muster |
| 01-01-008-022 | 20,0 | 20,0 | 105,0 | Muster | |
| 01-01-008-023 | M22; 5/8 | 22,0 | 20,0 | 105,0 | Muster |
| 01-01-008-024 | M24 | 24,0 | 20,0 | 105,0 | Muster |
| 01-01-008-025 | 3/8 | 25,4 | 20,0 | 105,0 | Muster |
| 01-01-008-026 | M30 | 28,0 | 20,0 | 105,0 | Muster |
| 01-01-008-027 | 7/8 | 30,0 | 25,0 | 105,0 | Muster |
| 01-01-008-028 | 1 | 32,0 | 25,0 | 105,0 | Muster |
| 01-01-008-029 | M35; 1 3/8 | 35,0 | 25,0 | 105,0 | Muster |
| 01-01-008-030 | M39; 1 1/2 | 38,0 | 25,0 | 55,0 | Muster |
| 01-01-008-031 | M42; 1 1/4" BSP | 41,5 | 25,0 | 55,0 | Muster |
| 01-01-008-032 | M45 | 44,0 | 25,0 | 55,0 | Muster |
| 01-01-008-033 | M48; 1 1/2" BSP | 47,5 | 25,0 | 55,0 | Muster |
| 01-01-008-034 | 2" UNF | 50,0 | 25,0 | 55,0 | Muster |
| 01-01-008-035 | 1 3/4" BSP | 53,0 | 25,0 | 55,0 | Muster |
| 01-01-008-036 | 56,0 | 25,0 | 55,0 | Muster | |
| 01-01-008-037 | 2" BSP | 60,2 | 25,0 | 55,0 | Muster |
| 01-01-008-038 | 2 1/2" BSP | 63,5 | 30,0 | 55,0 | Muster |
| 01-01-008-039 | 65,0 | 30,0 | 55,0 | Muster | |
| 01-01-008-040 | 70,0 | 30,0 | 55,0 | Muster | |
| 01-01-008-041 | 3" BSP | 75,0 | 30,0 | 55,0 | Muster |
| 01-01-008-042 | 80,0 | 30,0 | 55,0 | Muster | |
| 01-01-008-043 | 89,0 | 30,0 | 55,0 | Muster | |
| 01-01-008-044 | 95,0 | 30,0 | 55,0 | Muster | |
| 01-01-008-045 | 100,0 | 30,0 | 55,0 | Muster | |
| 01-01-008-046 | 110,0 | 30,0 | 55,0 | Muster |
