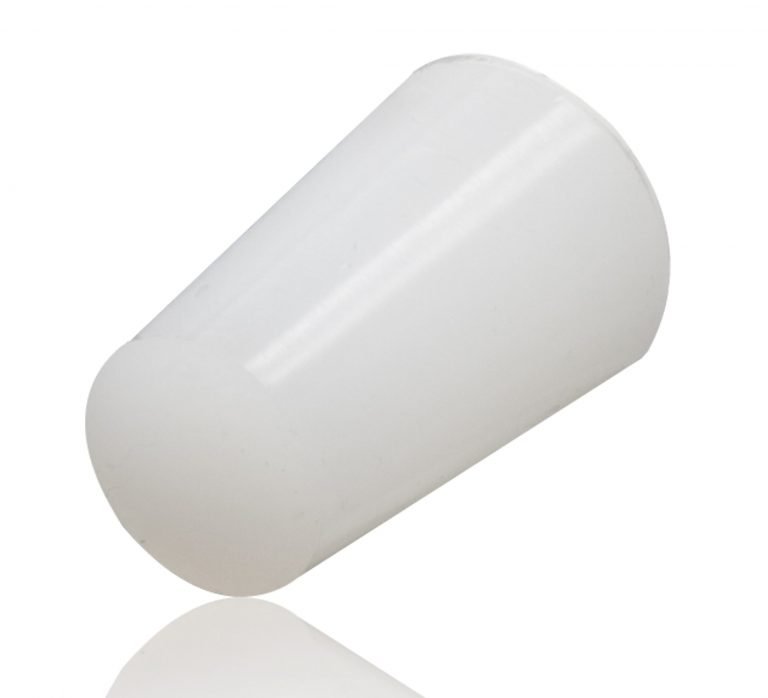

Diese Art von Schutzkappe /-stopfen ist universell einsetzbar. Durch die konische Form kann dieses Produkt als Stopfen für Bohrungen und Innengewinde sowie als Kappe für Bolzen und Außengewinde eingesetzt werden. Weiterhin werden Toleranzen überbrückt und es wird ein guter Sitz des Produktes gewährleistet.
| Artikelnummer | Anwendung | A (mm) | B (mm) | C (mm) | D (mm) | VE/Stk | Aktion |
|---|---|---|---|---|---|---|---|
| 01-01-001-001 | M7 | 4,4 | 6,1 | 10,0 | 10,0 | 1000 | Muster |
| 01-01-001-002 | M9 | 6,0 | 7,7 | 11,0 | 10,0 | 1000 | Muster |
| 01-01-001-003 | M10 | 7,6 | 9,3 | 13,0 | 10,0 | 1000 | Muster |
| 01-01-001-004 | 8,4 | 10,1 | 14,0 | 10,0 | 1000 | Muster | |
| 01-01-001-005 | M12 | 9,2 | 10,9 | 14,0 | 10,0 | 1000 | Muster |
| 01-01-001-006 | 9,9 | 11,6 | 15,0 | 10,0 | 1000 | Muster | |
| 01-01-001-007 | M14 | 10,6 | 12,3 | 16,0 | 10,0 | 1000 | Muster |
| 01-01-001-008 | 11,12 | 13,0 | 17,0 | 10,0 | 1000 | Muster | |
| 01-01-001-009 | 12,0 | 14,1 | 18,0 | 12,0 | 1000 | Muster | |
| 01-01-001-010 | M16 | 12,5 | 14,6 | 18,0 | 12,0 | 1000 | Muster |
| 01-01-001-011 | 13,4 | 15,5 | 19,0 | 12,0 | 1000 | Muster | |
| 01-01-001-012 | M18 | 14,0 | 16,1 | 19,0 | 12,0 | 1000 | Muster |
| 01-01-001-013 | M18 | 14,7 | 17,0 | 21,0 | 13,0 | 1000 | Muster |
| 01-01-001-014 | M20 | 16,3 | 18,6 | 22,0 | 13,0 | 1000 | Muster |
| 01-01-001-015 | M22 | 17,0 | 19,5 | 22,0 | 13,0 | 1000 | Muster |
| 01-01-001-016 | M22 | 17,5 | 20,0 | 24,0 | 15,0 | 1000 | Muster |
| 01-01-001-017 | M24 | 18,5 | 21,0 | 25,0 | 15,0 | 500 | Muster |
| 01-01-001-018 | 19,0 | 21,5 | 25,0 | 15,0 | 500 | Muster | |
| 01-01-001-019 | M24 | 20,5 | 23,3 | 27,0 | 16,0 | 500 | Muster |
| 01-01-001-020 | M25 | 20,7 | 23,5 | 28,0 | 16,0 | 500 | Muster |
| 01-01-001-021 | 22,0 | 24,8 | 29,0 | 16,0 | 500 | Muster | |
| 01-01-001-022 | M30 | 23,1 | 26,4 | 30,0 | 18,0 | 500 | Muster |
| 01-01-001-023 | 24,4 | 27,7 | 32,0 | 19,0 | 500 | Muster | |
| 01-01-001-024 | M33 | 26,4 | 29,2 | 33,0 | 19,0 | 500 | Muster |
| 01-01-001-025 | 27,7 | 21,2 | 35,0 | 19,0 | 500 | Muster | |
| 01-01-001-026 | M34 | 29,8 | 32,6 | 37,0 | 16,0 | 500 | Muster |
| 01-01-001-027 | 31,3 | 35,0 | 38,0 | 21,0 | 500 | Muster | |
| 01-01-001-028 | 33,3 | 37,1 | 41,0 | 22,0 | 500 | Muster | |
| 01-01-001-029 | M45 | 36,7 | 40,5 | 45,0 | 22,0 | 500 | Muster |
| 01-01-001-030 | 39,0 | 42,5 | 48,0 | 23,0 | 500 | Muster | |
| 01-01-001-031 | M48 | 39,6 | 42,9 | 48,0 | 19,0 | 500 | Muster |
| 01-01-001-032 | 41,4 | 44,7 | 49,0 | 19,0 | 1000 | Muster | |
| 01-01-001-033 | M50 | 44,3 | 46,9 | 51,0 | 19,0 | 1000 | Muster |
